InO2

Indium dioxide is a binary oxide of indium that is primarily studied for its semiconducting properties in thin-film research. It is investigated for potential utility in electronic components and transparent conductive coatings.

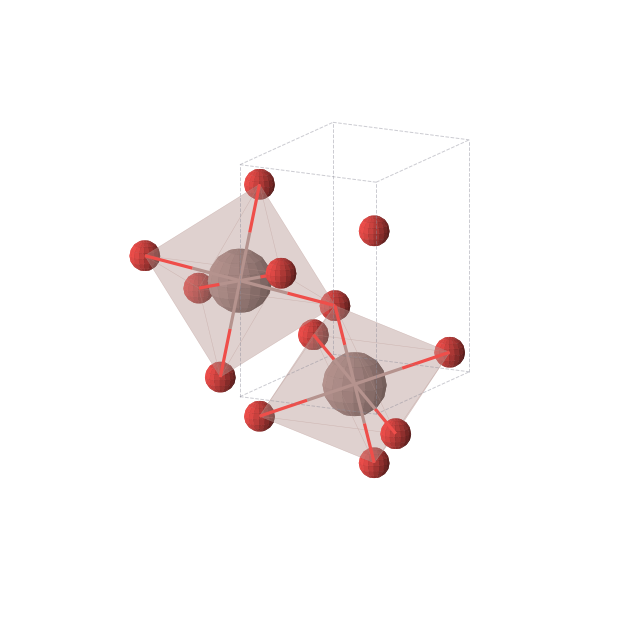

Crystal structure of InO2 (orthorhombic, Pnnm (No. 58))
Ground-state structure · Materials Project
Overview

Key Properties

Cross-validated computational properties for InO2, aggregated across 4 databases.

Band Gap

0.07 eV
Range across DFT structures

Energy Above Hull

0.230 eV/atom
Best (lowest) across sources

Stability

Above hull
2 DFT sources

Structures

279
4 databases, 33 space groups
Validation

Cross-Source DFT Agreement

How well independent DFT databases agree on the thermodynamics of InO2. Tight agreement means computed properties can be trusted without re-running calculations.

Agreement Score

1.00 / 1.00
Trust tier: medium

Hull Spread

0.000 eV
EAH spread across sources

Sources Compared

2
jarvis, materials_project

Space Group Consensus

All match
Crystallography

Reported Structures

Lowest-energy structures reported for InO2, ranked by energy above hull.

Space GroupCrystal SystemBand Gap (eV)E above hull (eV/atom)E/atom (eV)Density (g/cm³)
Pnnm (No. 58)orthorhombic0.070.2302-5.6506.26
Cm (No. 8)Monoclinic5.06
Cm (No. 8)Monoclinic6.25
Cm (No. 8)Monoclinic6.68
C2/m (No. 12)Monoclinic7.68
C2/m (No. 12)Monoclinic4.59
C2/m (No. 12)Monoclinic5.18
C2/m (No. 12)Monoclinic8.14
Cm (No. 8)Monoclinic7.30
C2/m (No. 12)Monoclinic6.77
C2/m (No. 12)Monoclinic6.52
C2/c (No. 15)Monoclinic4.75
Uses

Applications

Where InO2 is used.

Semiconductor researchThin-film electronicsTransparent conductive materials
Reference

Frequently Asked Questions

Common questions about InO2, answered from cross-validated data.

What is InO2?

Indium dioxide is a binary oxide of indium that is primarily studied for its semiconducting properties in thin-film research. It is investigated for potential utility in electronic components and transparent conductive coatings.

More questions
What is InO2 used for?
InO2 is used in semiconductor research, thin-film electronics, and transparent conductive materials.
What is the band gap of InO2?
InO2 has a DFT-computed band gap of 0.07 eV across 279 reported structures.
Is InO2 a metal, semiconductor, or insulator?
With a near-zero band gap it behaves as a (semi)metal.
Is InO2 thermodynamically stable?
InO2 has a lowest energy above hull of 0.230 eV/atom (above hull).
What is the crystal structure of InO2?
The lowest-energy reported polymorph of InO2 is orthorhombic symmetry, space group Pnnm (No. 58).
What is the density of InO2?
The computed density of the ground-state structure of InO2 is 6.26 g/cm³.
How many polymorphs of InO2 are known?
279 structures of InO2 are reported across 4 databases, spanning 33 distinct space groups.
What elements does InO2 contain?
InO2 contains In and O (2 elements).
Where does the data for InO2 come from?
InO2 data is cross-referenced from materials_project, mpaloe.
Explore

Related Compounds

Other Wide-Bandgap Oxide Semiconductors in the database.
